SOLARI PINO & VERO
CRONOQUARZ - master clock
CRONOQUARZ programmer master clock is fully programmable and able to control two unrelated lines of receiver clocks and up to 6 circuits with relay for program control of any equipment connected.
When used as a tower clock, three lines can be programmed.
It is also provided with an interface for serial communication and an interface for synchronisation by means of a DCF77 or GPS radio signal.
When used as a tower clock, three lines can be programmed.
It is also provided with an interface for serial communication and an interface for synchronisation by means of a DCF77 or GPS radio signal.
Summer and winter time switchovers are fully automatic and can be programmed for 20 years.
CRONOQUARZ has an alphanumerical display and a 16-key keypad for extremely simple user interaction with the master clock. The storage system ensures that all programming is saved even without power. During normal operation the display shows the current date and time, the clock line sends pulses with a programmed frequency and duration, the relay lines are driven according to the programming and any interfaces present are controlled.
The entering of a password, which prevents use of the equipment by unauthorised persons, enables programming of all the significant parameters of the device; in this case the display will show all the functions necessary for correct configuration and programming of the functions of the master clock.
The entering of a password, which prevents use of the equipment by unauthorised persons, enables programming of all the significant parameters of the device; in this case the display will show all the functions necessary for correct configuration and programming of the functions of the master clock.
Thanks to these performances. CRONOQUARZ is a true master clock, suitable for synchronising even complex systems..

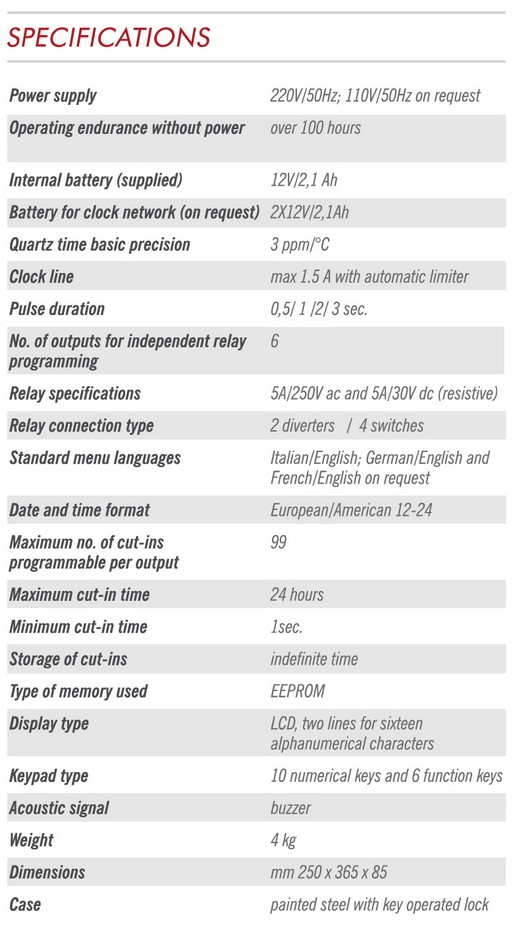

GENERAL SPECIFICATIONS
