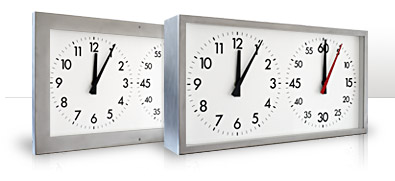

CRONOR - analog clock with second counter
The CRONOR second counter is used in all situations where it is necessary or useful to display and check directly the passing of the minutes and seconds: for example in operating theatres, outpatient units, test laboratories, food production firms, television and radio studios, swimming pools and sports facilities and monitored production processes, etc..
With a double dial for the clock and for the second counter, CRONOR allows a direct, constant and simultaneous check on the time and the passing of minutes and seconds.The second counter is controlled by synchronous motors that allow precise and silent movement and zero-setting. The clock can also be controlled by centralised systems or with an independent movement.
The operations of start, stop and reset are carried out from a keypad supplied as an optional. CRONOR is also available in the various versions: with hour counter and with the sole function of second counter and minute counter with a single dial.
CRONOR models
BUILT-IN VERSION
Case in steel painted with epoxy resins and with support for wall mounting; the projecting part is covered by an AISI 204 stainless steel frame and a back frame for wall mounting.
Weight without packing: 14kg
Case in steel painted with epoxy resins and with support for wall mounting; the projecting part is covered by an AISI 204 stainless steel frame and a back frame for wall mounting.
Weight without packing: 14kg
WALL VERSION
Case in satin finish AISI 304 stainless steel throughout.
Weight without packing: 12kg
Case in satin finish AISI 304 stainless steel throughout.
Weight without packing: 12kg
GENERAL SPECIFICATIONS
CLOCK POWER SUPPLY
220V - 50 Hz with quartz movement with power reserve;
pulse receiver with reversed polarity.
SECOND COUNTER POWER SUPPLY
220V - 50 Hz.
DIAL PROTECTION
3 mm thick mineral glass.
